PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V

Model Number : PM438

Brand Name : ymiho

Place of Origin : Wuxi, China

MOQ : 100

Price : $1.54-2.50 / piece

Accuracy Class : ±1%

Measuring Range : DC 0-450V

Dimensions : 67 * 41 * 17mm

Display Type : Digital Only

Operating Temperature : 0-50℃

color : black

HS Code : 8504902000

Meter type : voltmeter/ammeter/Thermometer...

Power suply : 8-12V

Resolution : 0.1 mV or 0.1A

MAX Display : 1999 counts

Product size : 67 * 41 * 17mm

Display size : 48 * 21 mm LCD

Installation dimension : 55 * 39 Square hole

Product Weight : Around 23g

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

PM438 Digital Ammeter and Voltmeter
The PM438 digital ammeter and voltmeter is a semi-finished panel meter designed as a professional current or voltage monitoring instrument for machinery and equipment applications.
Product Specifications
Display 3 1/2 digits LCD with Max. Reading of 1999
Polarity Automatic, positive implied, negative polarity indication
Measurement Rate 2 times per sec. nominal
PM438 (Voltage Tester) DCV 0 ~ 450V (default: 200mV)
PM438A (Voltage Tester) ACV 0 ~ 400V (default: 400V)
PM438B (Current Tester) DCA 0 ~ 5A (default: 2A)
Power Supply 8-12V (Customizable according to customer requirements)
Accuracy ±(1%+3)
Resolution 0.1 mV or 0.1A
Display Size 48 × 21 mm LCD
Product Size 67 × 41 × 17mm
Installation Dimension 55 × 39 Square hole
Weight Approximately 23g

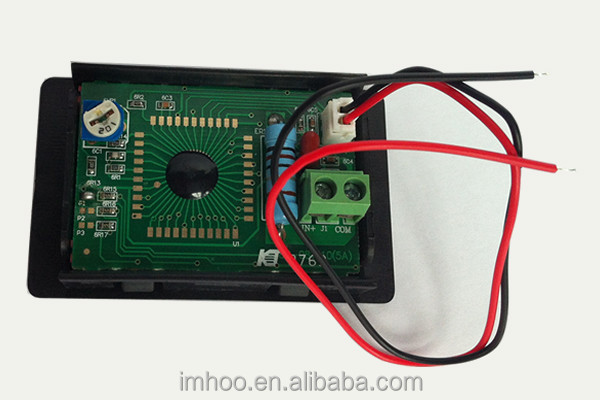

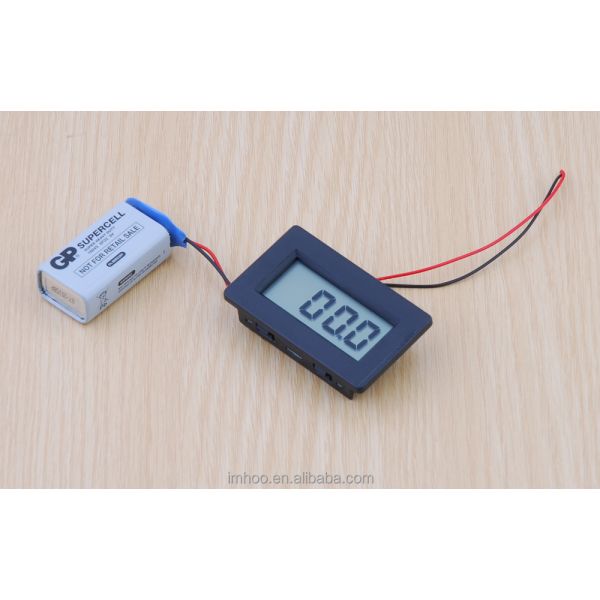

Product Images
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
Packaging & Shipping
Packing Type Gift Box (Customizable)
Standard Packing per Carton 250pcs/CTN
Carton Size 57 × 35 × 24cm
Net Weight 8.5kg
Gross Weight 9.5kg
PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V PM438 Digital Ammeter And Voltmeter DC 0-450V Measuring Range 8-12V
Our Services
  • High Quality, Competitive Pricing
  • Integrity and On-Time Delivery Commitment
  • Quality Assurance and Replacement Policy
  • OEM Services Available
  • Custom Product Research and Development
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour High-speed rail from Shanghai Hongqiao station. All our clients are warmly welcome to visit us!
Q: How can I get some samples?
A: We offer samples with free sample fee for orders under USD10.00, customers only need to pay the freight cost.
Q: What's your MOQ?
A: We accept trial orders starting from 1 piece for each product.
Q: Which Payment terms do you accept?
A: We accept T/T, L/C, Western Union, and PayPal.
Q: How does your factory handle quality control?
A: Quality is our priority. We maintain strict quality control from beginning to end of the manufacturing process.
